Home / Hotel Push Button Smart Switch Electrical KNX Wall Switch

Guangdong Daming Laffey Electric Co., Ltd.
Contact Now

Home / Hotel Push Button Smart Switch Electrical KNX Wall Switch

  • 1
  • 2

Brand Name : Smart Laffey

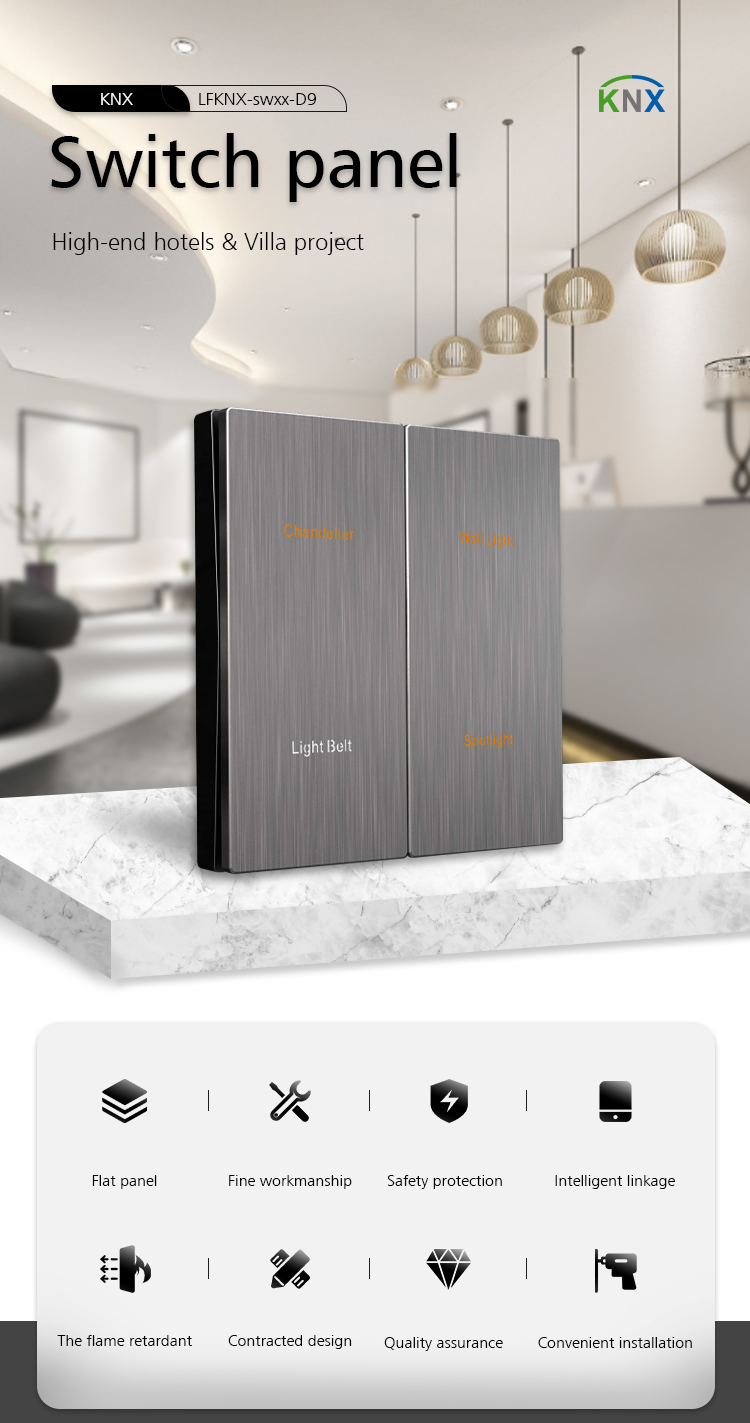

Model Number : LFKNX-swxx-D9

Place of Origin : Guangdong, China

MOQ : 50 Pieces

Price : Negotiable

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 10-15 work days

Packaging Details : Carton Box

Name : KNX Electrical Wall Switch

Type : Push Button

Cover : Full Metal

Certificate : KNX assosiate certificate

Application : Home / Hotel

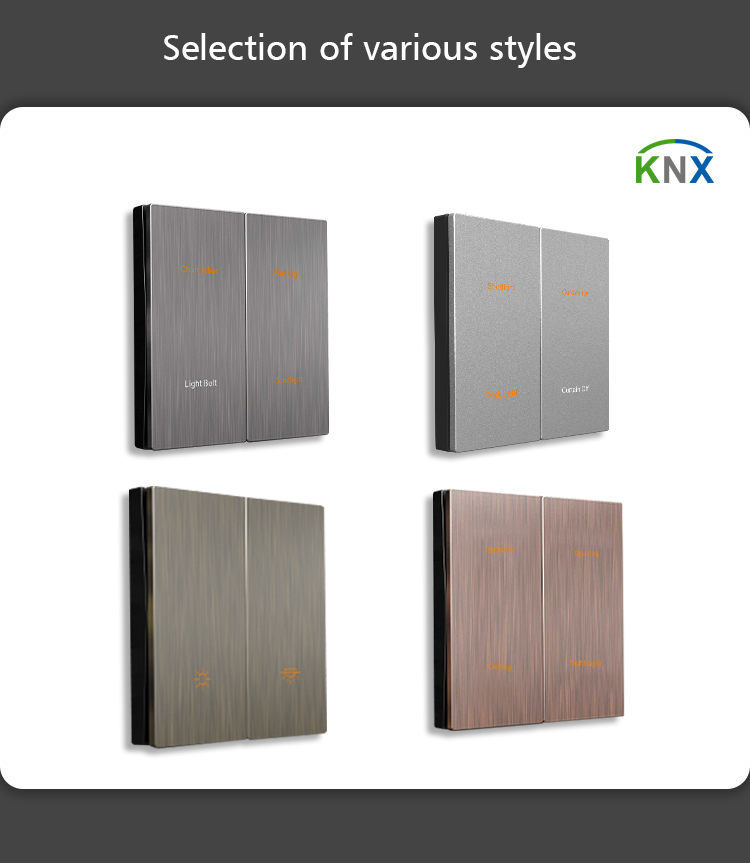

Color : Gold/Black/Grey/Champagne/Silver

Protocol : KNX

Power : 24V, DC

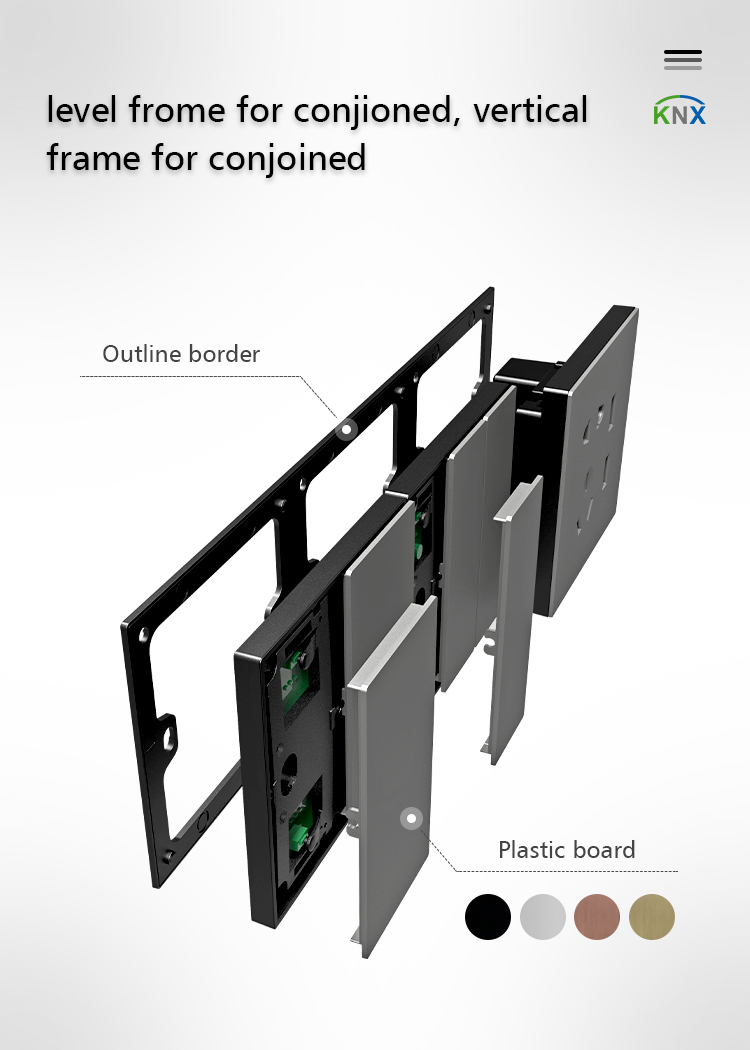

Conjoined : 2/3/4 conjoined

Contact Now

Home / Hotel Smart Switch Push Button KNX Electrical Wall Switch

Specifications

Product Name Smart Switch of KNX
Brand Smart Laffey
Size 86mm*86mm
Color White/Silver/Black/Grey
Protocol KNX
Power 24V, DC

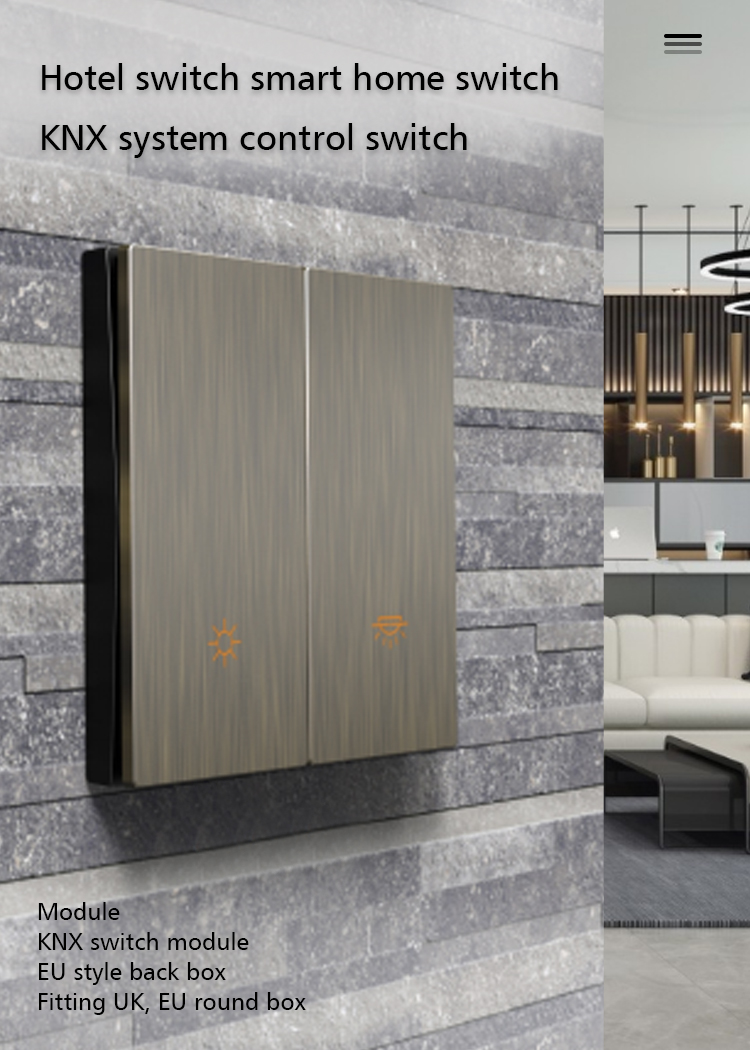

Back Box for Installation UK Square Box

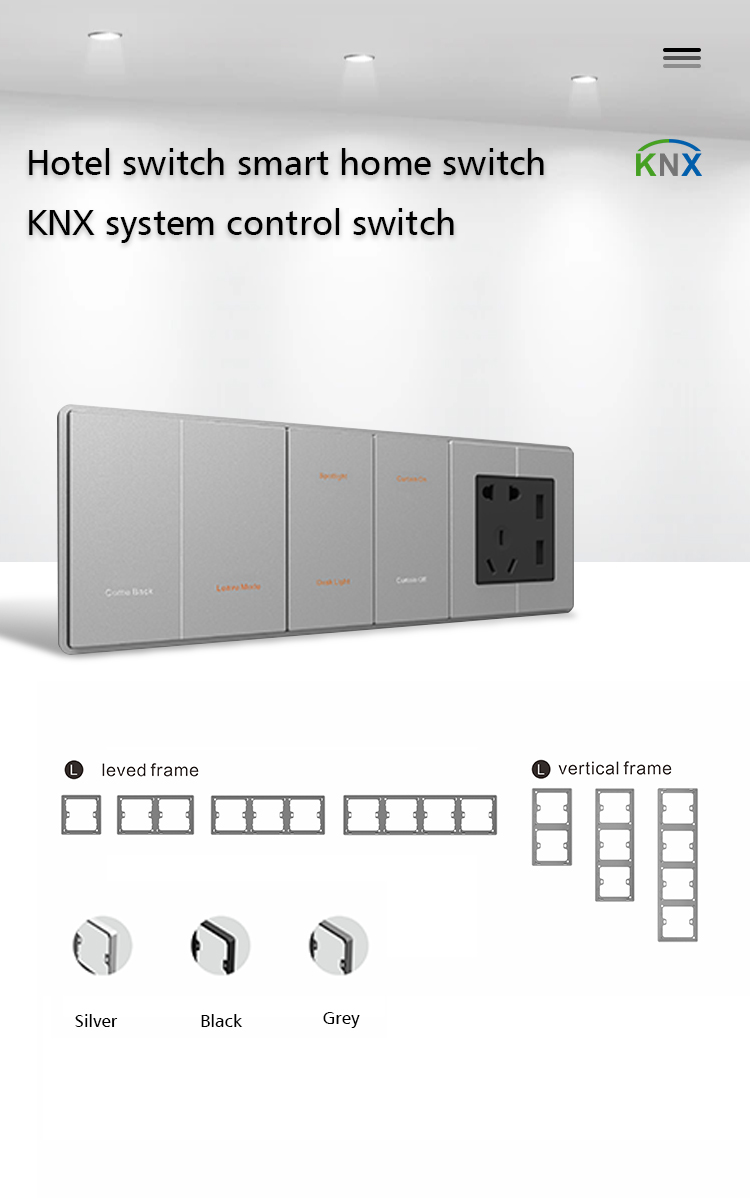

Conjoined 2/3/4 conjoined
Function Controlling lamp
Types 1-button 1/2-gang
2-button 2/4-gang
3-button 3/6-gang
Application Connecting KNX room control unit

Product Features

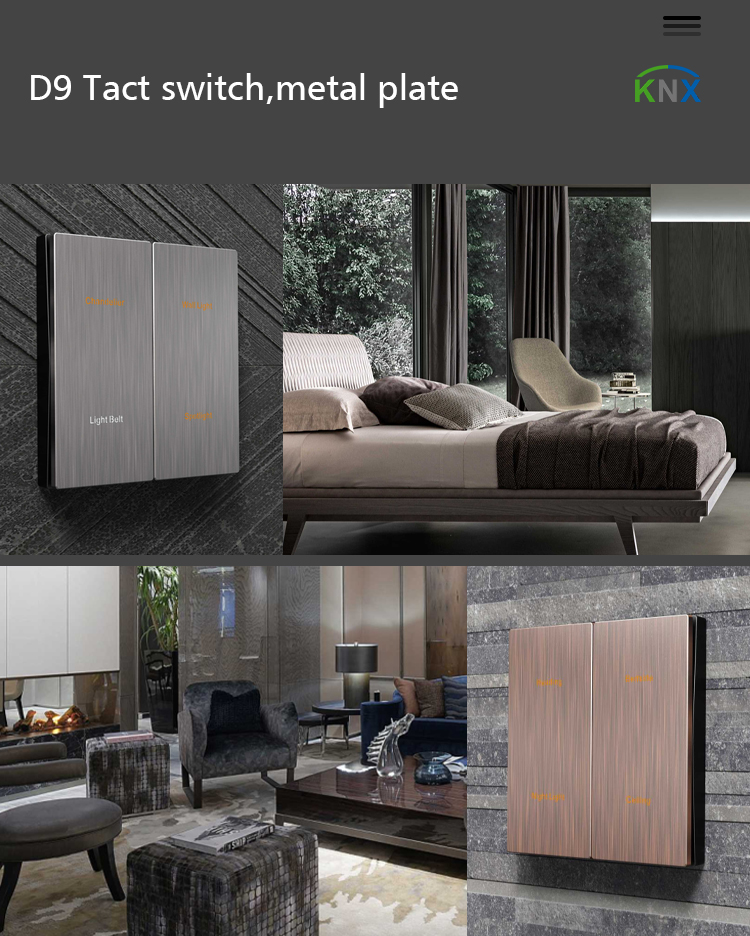

The D9 thick metal series uses a hard thick metal panel, which is scratch-resistant and wear-resistant, durable and has a good texture. Nowadays, many furniture designs use metal elements such as copper and steel, and the metal panels are just the same as the interior decoration.


In addition, because the traditional switch does not have any identification, the user often has to try many times to find the switch that he wants to turn on, which causes great inconvenience. Or to distinguish which light the switch is, and often put on a variety of stickers. Today's electronic switches can solve this problem very well. According to the needs of users, personalized characters or patterns are engraved on the switch panel to identify the lamps connected to the switch, which is convenient for users to use.

Description

KNX switch panels need to be connected through the control system. Control panels are mainly used in building control systems. It is installed as a system with other devices on the bus, and the function is simple and intuitive. Users can systematically plan and execute these functions according to their needs.

Control panels can be used to control switches, dimming, blinds, and more. Each channel on the panel includes a button and an LED indicator.

The control panel is a standard 86 back box mounted device with 6 key outputs. Connect the EIB/KNX system through the EIB bus, and use the engineering design tool software ETS software (ETS4 and above) to assign physical addresses and group addresses and set parameters.

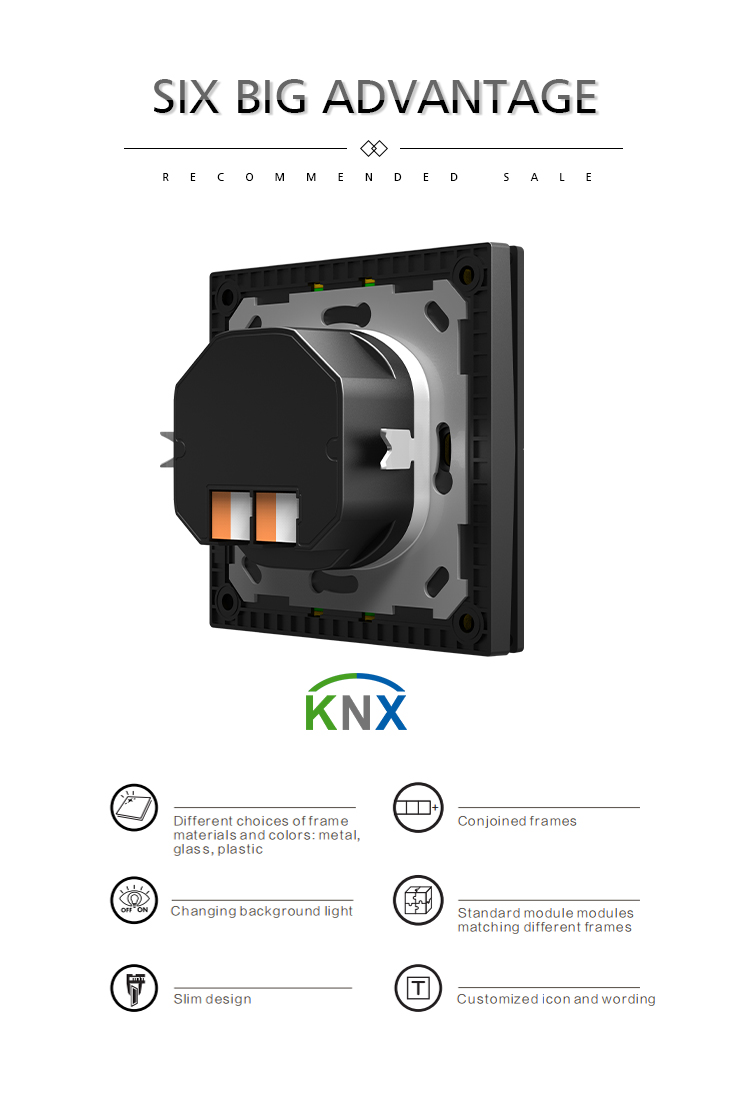

The control panel is directly connected to the bus via terminal blocks and requires 24V DC auxiliary power. Each channel of the panel can use the various functions mentioned above and are independent of each other.

Parameters

Bus voltage

21-30 VDC

Bus current

≤ 12mA

Bus power

≤ 360mW

Auxiliary voltage

24 VDC

Auxiliary current

≤ 30 mA

Auxiliary power

≤ 0.75W

Home / Hotel Push Button Smart Switch Electrical KNX Wall Switch
Home / Hotel Push Button Smart Switch Electrical KNX Wall Switch
Home / Hotel Push Button Smart Switch Electrical KNX Wall Switch
Home / Hotel Push Button Smart Switch Electrical KNX Wall Switch

Advantages

(1) Mutual benefit : We are factory also have more than 10 years experience in manufacturing and developing of switches and sockets.

(2) Customize : We have strong R&D team, we will try our best to custom product as your request.

(3) OEM service : (a) Printing your Logo (b) Engraving words or icons

(4) Mix order : We accept mix order, different model and small quantity order.

(5) We have got KNX Assosiate Certificate/ CE Emc/Rohs for different products, and we have certified by ISO9001 Quality Management System.

FAQ

1. Q:What’s the shipping method?

A: By express way. Such as Fedex, DHL, TNT and so on; by air or by sea. Shipping cost is decided by shipping ways and product’s actual weight and volume, also your detailed address.

2. Q:Can we print our own brand or logo on your products?

A: Yes, it is our pleasure to be one your OEM manufacturer in China to meet your OEM requirements.

3. Q: Why do some goods have difference between website picture and practical items?

A: Because difference of light and browser, also different batches, materials may be little difference, such as lining. Sometimes, the picture is for reference only. These are allowed in actual case. If any question, please tell us before order and ask clearly.

4. Q: Can I order one piece for sample or trial order less than MOQ to test the quality?

A: Yes, We recommend to check the sample before order. We accept trial order less than MOQ.

5. Q: If I order big quantity, what's the good price?

A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.

If you have another question, please feel free to contact us.
